Laser Tools Engine Timing Kit - for VW Group 1.0, 1.2, 1.4, 1.5 TSi Petrol 9155LT
Laser Tools Engine Timing Kit - for VW Group 1.0, 1.2, 1.4, 1.5 TSi Petrol 9155LT
The 9155 kit brings together the Laser 8824 and 9103 kits to form one kit to allow the user to align, set and check the camshaft timing of the Volkswagen group EA 211, EVO 4 cylinder TSi ACT, EA211 3 & 4 cylinder (without ACT), TFSi CoD, TSi ACT, TFSi, BlueGT TSi ACT petrol engines without the need to resort to computer based alignment tools.
The 9155 utilises a battery powered digital inclinometer combined with precision manufactured adaptors and alignment tooling to ensure the camshafts are set to the manufacturer’s specification.
There should be no requirement for interaction with the vehicles OBD system when following the Laser tools procedures detailed below.
- Applications include: Audi (from 2017). Seat (from 2015), Skoda (from 2015), Volkswagen (from 2015).
- Engine applications include: 1.0L, 1.2L, 1.4L & 1.5L TSi Petrol engine. For full engine code list please see applications in downloads.
- Engine variants include: EA 211, EVO 4-cylinder TSi ACT, EA211 3 & 4 cylinder (without ACT), TFSi CoD, TSi ACT, TFSi, BlueGT TSi ACT.
- Use only in conjunction with Laser Part Nos. 8824 & 9103 instructions.
- Camshaft pulley holding tools (Laser Part Nos. 4237, 8421 & 9132) or similar must be used when loosening or tightening the camshaft pulleys. Made in Sheffield. EU & UK Registered Design.

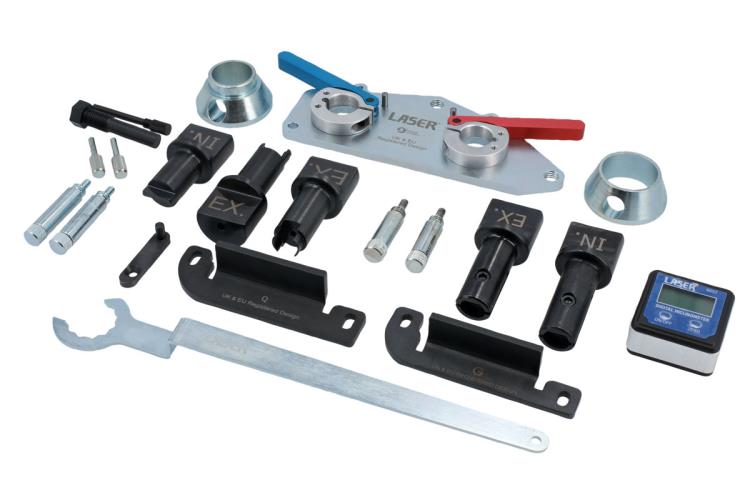

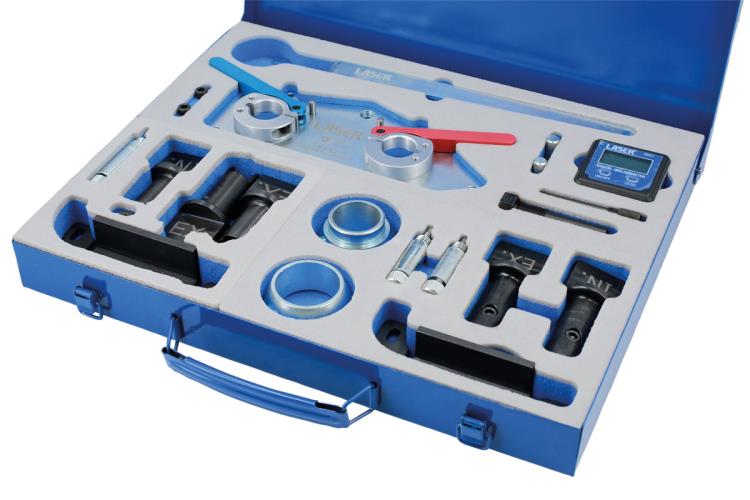

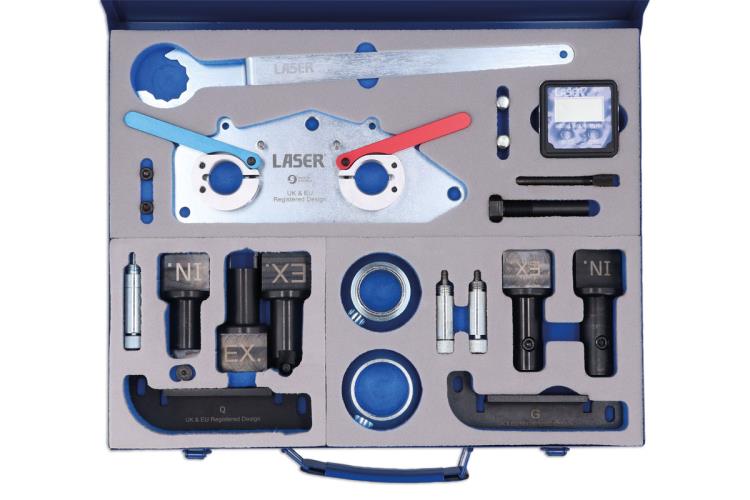

Set Contents
C1044 Brake Stop Pin x 2
C1052 Adapter Plate for Camshaft housing
OEM Toolcodes
VAS 611 007
C1053 Mounting Spacers & Screws for A
C1056 Inlet Camshaft Spacer Boss (EA211 EVO)
C1057 Exhaust Camshaft Spacer Boss (EA211 EVO)
C1058 Inlet Camshaft Adapter (EA211 EVO)
C1059 Exhaust Camshaft Adapter (EA211 EVO)
C1060 Inclinometer Reference Bar (EA211 EVO) 1.5
C1062 Fixing Bolts, Adapter Plate From 8824
C1063 Inlet Camshaft Adapter (TSi ACT, EA211 3 & 4 (cylinder without ACT)
OEM Toolcodes
VAS 611 007/9
C1064 Exhaust Camshaft Adapter (TSi ACT , EA211 3 & 4 cylinder (without ACT)
OEM Toolcodes
VAS 611 007/10
C1065 Inclinometer Reference Bar (TSi ACT , EA211 3 & 4 cylinder (without ACT)
C1076 Exhaust Camshaft Adaptor (1.4 TFSI COD, TSI ACT, TFSI, Blue GT TSI ACT )
C439 Crankshaft Locking Pin
OEM Toolcodes
T10340
C685 Camshaft Drive Belt Tension Wrench
OEM Toolcodes
T10499 T10499A
C735 Camshaft Bar - Short Pin
OEM Toolcodes
T10504/1
C784 Digital Inclinometer
OEM Toolcodes
1376-A G 1376A T10550/2/3
Supplier Code: 9155LT
E and M Code: 9155LT
Price(Exc.VAT): £999.99
Quantity Available: 1
Minimum Postal Charge: Royal Mail Large Packets £5.50
When will this be back in stock / Information Request
Category: Tools and Tool Storage / Sub Category: Engine Timing Tools
|
