Laser Tools Timing Tool Kit - for Renault 1.6 2.0 2.3 DCI Nissan 4936LT
Laser Tools Timing Tool Kit - for Renault 1.6 2.0 2.3 DCI Nissan 4936LT
The Renault DCi 1.6, 2.0 and 2.3L engines utilise a chain drive between the crankshaft and exhaust camshaft - the inlet camshaft is gear driven from the exhaust camshaft. These engines employ a split camshaft gear on the inlet cam which has its two halves radially sprung to quieten the gear drive and remove any backlash. To set the timing correctly the inlet camshaft gear must first be removed from the engine and the two gear halves aligned using an inlet camshaft alignment tool. This tool kit includes a vice mounted inlet gear alignment tool for this purpose.
- Timing tool kit for Renault 1.6 and 2.0L DCI chain drive diesel engines fitted to the Megane, Vel Satis, Espace, Scenic, Trafic, Laguna and Koleos. Engine codes M9R XXX, M9T XXX and R9M XXX .
- These engines are also fitted to the Nissan Qashqai, Vauxhall/Opel Vivaro as well as Mercedes C-Class and Vito (626.951 and 622.951 engine codes).
- Two crankshaft locking pins are now included to cover the 1.6 DCi (comp. G), 2.0 and 2.3 DCi (comp. F); Crankshaft Locking Pin (comp. G) has been added for later M9T 2.0 and R9M 1.6 DCi engines.
- Equivalent OEM Codes: EN48334, EN48332, EN48331 and EN48330. Renault OEM MOT 1766, MOT 1769, MOT 1770, MOT 1773 and MOT 1970.

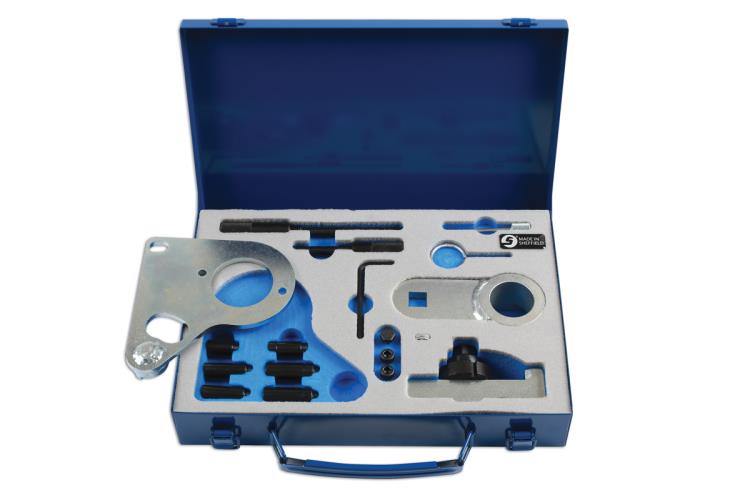

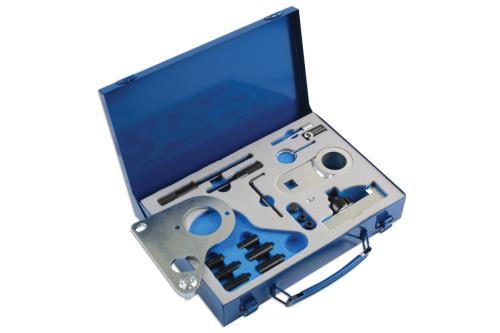

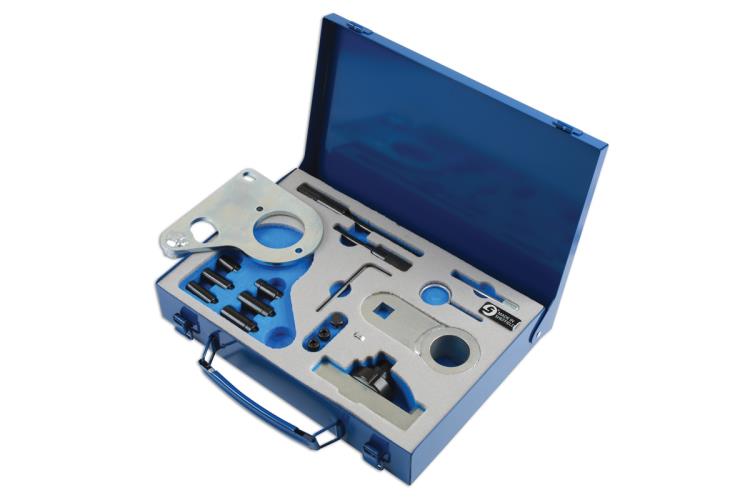

- Supplied in metal storage case; Made in Sheffield.

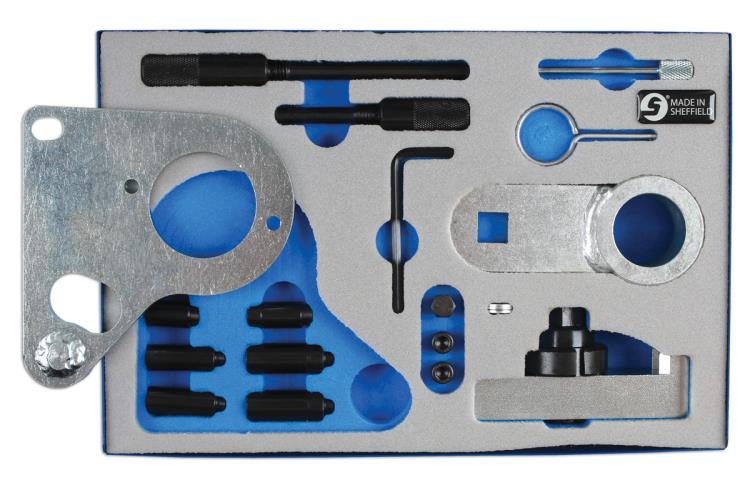

Set Contains
C485 Chain Tensioner Locking Pin
OEM Toolcodes
C486 Camshaft Setting Tool
OEM Toolcodes
- 48332
- 626 589 04 40 00
- EN-48332
- MOT 1769
C487 Camshaft Gear Alignment Tool
OEM Toolcodes
C488 Auxiliary Belt Tensioner Locking Pin.
OEM Toolcodes
- 4 mm drill bit
- 4mm pin
- EN-955-2
- KM6130
- Pin 3 6mm
C489 Crankshaft Locking Pin
OEM Toolcodes
C490 Crankshaft Pulley Holding Tool
OEM Toolcodes
- 626 589 02 40 00
- EN 48334
- MOT 1770
C602 Crankshaft Locking Pin
OEM Toolcodes
- 626 589 00 15 00
- EN-51241
- MOT 1970
Applications
Nissan
- Nissan NV400 2011 - 2019
- Nissan Primastar 2006 - 2015
- Nissan Qashqai/Qashqai+2 2007 - 2014
- Nissan Qashqai 2014 - on
- Nissan X-Trail II 2007 - 2014
- Nissan X-Trail III 2014 - on
1,6 dCi R9M R9M 410
2,0 dCi M9R M9R 630 M9R 692 M9R 780 M9R 782 M9R 784 M9R 786 M9R 788
2,3 CDTi M9T 670 M9T 672 M9T 676 M9T 678 M9T 680 M9T 686 M9T 690 M9T 692 M9T 694 M9T 696 M9T 698 M9T 700 M9T 702 M9T 704 M9T 706 M9T 708 M9T 710 M9T 870 M9T 880 M9T 890 M9T 896 M9T 898
Renault
- Renault Espace/Grand Espace IV 2006 - 2015
- Renault Espace V 2015 - 2018
- Renault Fluence 2013 - 2015
- Renault Kadjar 2015 - 2018
- Renault Koleos 2008 - 2016
- Renault Koleos II 2017 - 2019
- Renault Laguna II 2005 - 2007
- Renault Laguna III 2007 - 2015
- Renault Latitude 2010 - 2016
- Renault Master III 2010 - 2019
- Renault Megane II 2006 - 2010
- Renault Megane III 2009 - 2017
- Renault Megane IV 2016 - 2018
- Renault Scenic/Grand Scenic II 2006 - 2009
- Renault Scenic/Grand Scenic III 2009 - 2016
- Renault Scenic/Grand Scenic IV 2016 - 2018
- Renault Talisman 2015 - 2018
- Renault Trafic II 2006 - 2015
- Renault Trafic III 2014 - on
- Renault Vel Satis 2005 - 2010
1,6 dCi R9M 402 R9M 404 R9M 408 R9M 409 R9M 413 R9M 414 R9M 415 R9M 450 R9M 452 R9M 453
2,0 dCi M9R 610 M9R 613 M9R 615 M9R 630 M9R 692 M9R 700 M9R 721 M9R 722 M9R 724 M9R 740 M9R 742 M9R 744 M9R 746 M9R 748 M9R 750 M9R 754 M9R 756 M9R 760 M9R 761 M9R 762 M9R 763 M9R 780 M9R 782 M9R 784 M9R 786 M9R 788 M9R 800 M9R 802 M9R 803 M9R 804 M9R 805 M9R 806 M9R 808 M9R 809 M9R 811 M9R 812 M9R 814 M9R 815 M9R 816 M9R 817 M9R 820 M9R 824 M9R 828 M9R 830 M9R 832 M9R 833 M9R 834 M9R 835 M9R 836 M9R 838 M9R 839 M9R 844 M9R 845 M9R 846 M9R 849 M9R 854 M9R 855 M9R 856 M9R 857 M9R 858 M9R 859 M9R 864 M9R 865 M9R 866
2,3 dCi M9T 670 M9T 672 M9T 676 M9T 678 M9T 680 M9T 686 M9T 690 M9T 692 M9T 694 M9T 696 M9T 698 M9T 700 M9T 702 M9T 704 M9T 706 M9T 708 M9T 710 M9T 870 M9T 880 M9T 890 M9T 896 M9T 898
Vauxhall / Opel
- Vauxhall Movano-B 2010 - 2019
- Vauxhall Vivaro-A 2006 - 2014
- Vauxhall Vivaro-B 2014 - 2019
- Opel Movano-B 2010 - 2019
- Opel Vivaro-A 2006 - 2014
- Opel Vivaro-B 2014 - 2019
1,6 CDTi R9M 408 R9M 413 R9M 452 R9M 450
2,0 CDTi/ecoFlex M9R 630 M9R 692 M9R 780 M9R 782 M9R 784 M9R 786 M9R 788
2.3 CDTi/ecoFlex M9T 670 M9T 672 M9T 676 M9T 678 M9T 680 M9T 686 M9T 690 M9T 692 M9T 694 M9T 696 M9T 698 M9T 870 M9T 880 M9T 890 M9T 892 M9T 896 M9T 898
2.3 Bi-CDTi/ecoFlex M9T 700 M9T 702 M9T 706 M9T 708 M9T 710
Mercedes-Benz
- Mercedes-Benz C-Class 2014 - 2018
- Mercedes-Benz Vito 2014 - on
1.6 CDI/BlueTEC 622.951 626.951
Supplier Code: 4936LT
E and M Code: 4936LT
Price(Exc.VAT): £999.99
Quantity Available: 1
Minimum Postal Charge: Royal Mail Large Packets £5.50
When will this be back in stock / Information Request
Category: Tools and Tool Storage / Sub Category: Engine Timing Tools
|
