Laser Tools Timing Tool Pin Set - for Ford TDCi Diesel PSA 4145LT
Laser Tools Timing Tool Pin Set - for Ford TDCi Diesel PSA 4145LT

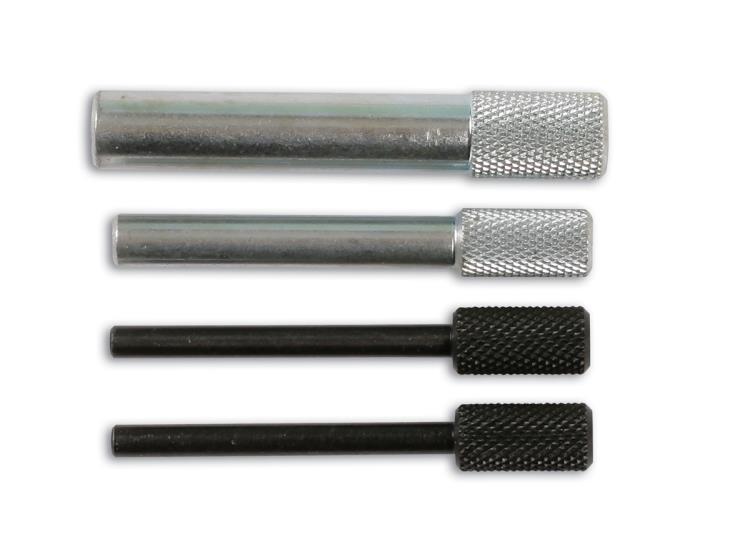

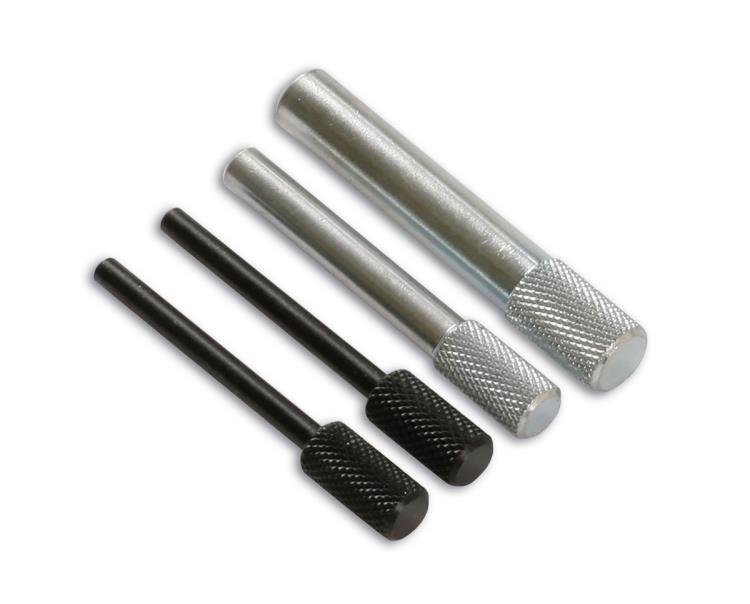

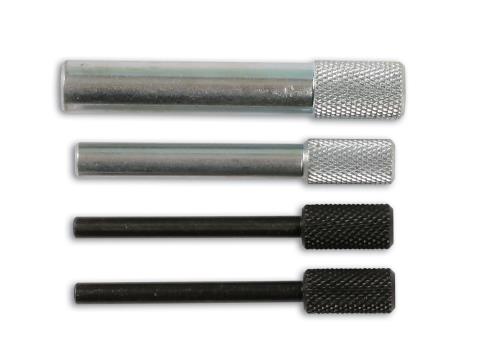

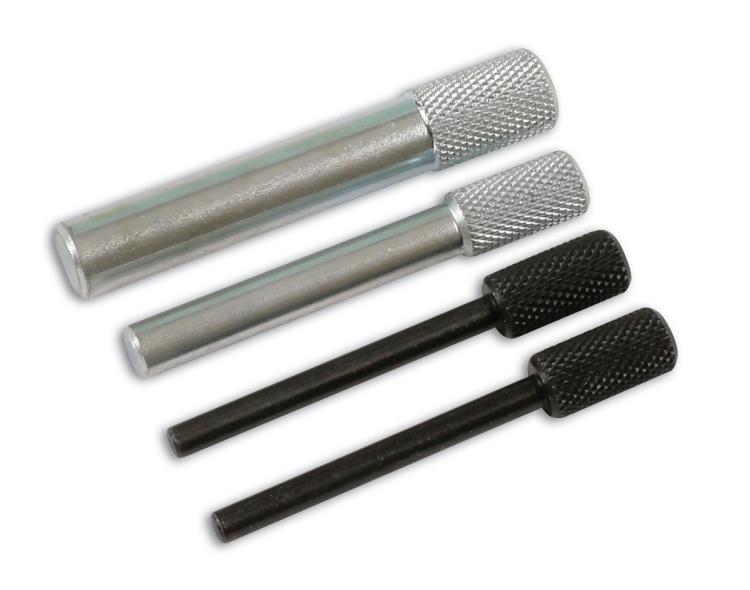

A set of 4 pins designed to be used to lock the crankshaft, camshaft and high pressure fuel pump pulleys on the Ford 1.4 and 1.6L TDCi diesel engines found across the Ford & PSA ranges from 2002.
- For 1.4 and 1.6L TDCi Ford chain engines with codes G8DA, G8DB and HHDA (from 2004).
- Supplementary kit for use on specific engines.
- For complete list of tools required go to www.lasertools.co.uk/toolpoint.
- OEM Ref: 303-734/21-162, 303-732/21-260 (2) and 303-735/21-263.
- Also suitable for other marques.
- Made in Sheffield.
Set Contains
C057 Flywheel Locking Pin
OEM Toolcodes
- 0194C
- 21 262
- 303 734
- 49 JE02 020
- 999 7121
- 999 7169
- EN-52138
C089 Crankshaft Pulley Alignment Pin
OEM Toolcodes
- 0132AB
- 0178D
- 0194A
- 077440010400
- 1.860.617.000
- 11 9 790
- 21-260
- 303-732
- 4527 TS2
- 49 JE02 018
- 5711 TD
- 99360608
- 999 7169
C101 Camshaft/Crankshaft Timing Pin
OEM Toolcodes
- 0132AJ1
- 0187B
- 0189B
- 0194B
- 09919 58120
- 21 263
- 303 735
- 3031277
- 49 JE02 021
- 607 589 01 15 00
- 8mm drill bit
- 8mm Pin
- 999 7122
- EN-52137
- MOT 1430
- Mot.1430
Applications
Ford
- Ford B-MAX 2012 - 2018
- Ford C-MAX/ Grand C-MAX 2011 - on
- Ford EcoSport 2013 - on
- Ford Fiesta 2002 - 2008
- Ford Fiesta 2008 - 2017
- Ford Fiesta 2017 - 2018
- Ford Focus C-MAX/ C-MAX 2003 - 2010
- Ford Focus 2004 - 2011
- Ford Focus 2011 - 2018
- Ford Focus 2018 - on
- Ford Fusion 2002 - 2011
- Ford Galaxy 2011 - 2015
- Ford Kuga 2016 - on
- Ford Mondeo 2011 - 2015
- Ford Mondeo 2014 - 2018
- Ford S-MAX 2011 - 2015
- Ford Transit Courier 2014 - on
- Ford Transit Connect 2014 - on
1,4 TDCi F6JA F6JB F6JC F6JD
1,5 TDCi / ECOnetic AEDA ENUG UGCA UGCB UGCC UGJC UGJE XUCA XUCC XUCD XUGA XUJA XUJB XUJF XUJG XUJH XVCA XVCB XVCC XVGA XVGB XVGC XVJA XVJB XVJC XVJD XWCA XWCB XWDA XWDB XWDC XWDD XWDE XWDG XWGA XWGB XWJB XWMA XWMB XWMC XWMD XWME XXCA XXCC XXDA XXDB XXDC XXDD XXDE XXGA
1,5 EcoBlue TDCi BEGA Z2DA Z2GA Z2JA ZTDA ZTGA ZTJA ZTJB ZTJC
1,6 TDCi / ECOnetic G8DA G8DB G8DC G8DD G8DE G8DF GPDA GPDB GPDC HHDA HHDB HHJA HHJB HHJC HHJD HHJE HHJF KVJA MTDA NGCA NGDA NGDB T1BA T1BB T1BC T1DA T1DB T1GA T1WA T1WB T3CA T3CB T3CC T3DA T3DB T3JA T3JB TZGA TZGB TZJA TZJB U3CA UBGA UBJA
Citroen
- Citroen Xsara II 2002 - 2004
- Citroen Xsara Picasso 2002 - 2010
- Citroen Berlingo I/II 2005 - 2011
- Citroen Berlingo III 2008 - 2018
- Citroen Berlingo IV 2018 - on
- Citroen Dispatch/Jumpy III 2007 - 2016
- Citroen Dispatch/Jumpy IV 2016 - on
- Citroen Nemo 2008 - 2010
- Citroen C1 2005 - 2010
- Citroen C2 2003 - 2010
- Citroen C3 I/II 2002 - 2010
- Citroen C3 III 2010 - 2017
- Citroen C3 IV 2016 - on
- Citroen C3 Aircross 2017 - on
- Citroen C4 2004 - 2011
- Citroen C4 II 2011 - 2018
- Citroen C4 Picasso 2006 - 2018
- Citroen C4 Aircross 2012 - 2017
- Citroen C4 Cactus 2014 - on
- Citroen C4 SpaceTourer 2018 - on
- Citroen C5 2004 - 2015
- Citroen C5 Aircross 2018 - on
- Citroen C-Elysee 2012 - on
- Citroen DS3 2009 - 2015
- Citroen DS4 2011 - 2015
- Citroen DS5 2012 - 2015
1.4 HDi 8V 8HS (DV4TED) 8HT (DV4TD) 8HW (DV4TD) 8HX (DV4TD) 8HX (DV4TED4) 8HZ (DV4TD)
1.4 HDi 16V 8HV (DV4TED4) 8HY (DV4TED4)
1.4 HDi 8V Turbo 8HP (DV4C) 8HR (DV4C)
1.6 HDi 16V 9HS (DV6TED4BU) 9HT (DV6BTED4) 9HT (DV6BUTED4) 9HU (DV6UTED4) 9HV (DV6TED4B) 9HW (DV6BTED4) 9HX (DV6ATED4) 9HX (DV6AUTED4) 9HX (DV6TED4) 9HY (DV6TED4) 9HZ (DV6TED4)
1.6 HDi 8V Turbo 9HC (DV6CTED) 9HD (DV6CTED) 9HE (DV6DTED) 9HF (DV6DTED) 9HG (DV6CM) 9HH (DV6DU) 9HJ (DV6DTED) 9HK (DV6ETED) 9HL (DV6CTED) 9HM (DV6UC) 9HN (DV6ETED) 9HP (DV6DTED) 9HR (DV6CTED)
1.6 BlueHDi BHS (DV6FDU) * BHV (DV6FDU) * BHW (DV6FE) * BHX (DV6FC) * BHX (DV6FCU) * BHY (DV6FD) * BHZ (DV6FC) *
1.5 BlueHDi YHR (DV5RUCD) YHV (DV5RUC) YHW (DV5RE) YHX (DV5RC) YHX (DV5RCD) YHY (DV5RD) YHZ (DV5RC)
DS
- DS 3 2015 - 2018
- DS 4 2015 - 2018
- DS 4 Crossback 2015 - 2018
- DS 5 2015 - 2018
1.4 HDi 8HR (DV4C)
1.6 HDi 9HD (DV6C) 9HP (DV6D) 9HR (DV6C)
1.6 BlueHDi BHW (DV6FE) * BHX (DV6FC) * BHY (DV6FD) * BHZ (DV6FC) *
Peugeot
- Peugeot 107 2005 - 2010
- Peugeot 1007 2005 - 2010
- Peugeot 206 2001 - 2013
- Peugeot 207 2006 - 2015
- Peugeot 208 2012 - 2019
- Peugeot 301 2012 - on
- Peugeot 307 2001 - 2008
- Peugeot 308 2007 - 2014
- Peugeot 308 II 2013 - on
- Peugeot 308 CC 2009 - 2015
- Peugeot 407 2004 - 2011
- Peugeot 508 2011 - on
- Peugeot 2008 2013 - 2020
- Peugeot 3008 2009 - 2016
- Peugeot 3008 II 2016 - on
- Peugeot 4008 2012 - 2017
- Peugeot 5008 2010 - 2017
- Peugeot 5008 II 2017 - on
- Peugeot Bipper 2008 - 2010
- Peugeot Expert III 2007 - 2016
- Peugeot Expert IV 2016 - on
- Peugeot Partner I/II 2005 - 2011
- Peugeot Partner III 2014 - 2018
- Peugeot Partner IV 2018 - on
- Peugeot Rifter 2018 - on
- Peugeot Traveller 2016 - on
1.4 HDi 8V DV4TED (8HS) DV4TD (8HT) DV4TD (8HX) DV4TD (8HZ)
1.4 HDi 8V Turbo DV4C (8HP) DV4C (8HR)
1.6 HDi 16V DV6TED4B (9HS) DV6BTED4 (9HT) DV6BUTED4 (9HT) DV6UTED4 (9HU) DV6TED4 (9HV) DV6BTED4 (9HV) DV6TED4 (9HW) DV6BTED4 (9HW) DV6TED4 (9HX) DV6ATED4 (9HX) DV6AUTED4 (9HX) DV6TED4 (9HY) DV6TED4 (9HZ)
1.6 HDi 8V Turbo DV6C (9HC) DV6CTED (9HC) DV6C (9HD) DV6DTED (9HE) DV6DTED (9HF) DV6CM (9HG) DV6DU (9HH) DV6DTED (9HJ) DV6ETED (9HK) DV6C (9HL) DV6CTED (9HL) DV6UC (9HM) DV6ETED (9HN) DV6D (9HP) DV6DTED (9HP) DV6C (9HR) DV6CTED (9HR)
1.6 BlueHDi DV6FC (BHX) * DV6FC (BHZ) * DV6FD (BHY) * DV6FE (BHW) * DV6FCU (BHX) * DV6FDU (BHS) * DV6FDU (BHV) *
1.5 BlueHDi DV5RUCD (YHR) DV5RUC (YHV) DV5RE (YHW) DV5RC (YHX) DV5RC (YHY) DV5RD (YHY) DV5RC (YHZ) DV5RD (YHZ)
Supplier Code: 4145LT
E and M Code: 4145LT
Price(Exc.VAT): £999.99
Quantity Available: 1
Minimum Postal Charge: Royal Mail Large Packets £5.50
When will this be back in stock / Information Request
Category: Tools and Tool Storage / Sub Category: Engine Timing Tools
|
