Bosch Pressure Sensor MAP Sensor 115 kPa DS-S3-TF 261230245

Bosch Car Parts

Bosch Pressure Sensor MAP Sensor 115 kPa DS-S3-TF 261230245

  • Replacement MAP Sensor / Pressure Sensor
  • Suitable for: Alfa Romeo, Can-Am, Chery, Chevrolet, Ducati, FAW, Fiat, Lancia, Proton, Rotax, Scania, Sea-Doo, Ski-Doo, Tata Motors and Trumpchi Vehicles

Specifications

  • Part number: 0 261 230 245
  • Designation: Pressure sensor
  • Article status: Standard
  • Response time - max. 1 ms
  • Load resistance - min. 5 kOhm
  • Load resistance - max. 5 kOhm
  • Measuring range (pressure) - min. 0 kPa
  • Measuring range (pressure) - max. 115 kPa
  • Current input - max. 12.5 mA
  • Supply voltage - typical 4.75V
  • Measuring range (temperature) - min. -40 °C
  • Measuring range (temperature) - max. 130 °C
  • Type formula: DS-S3-TF

OEM Numbers

  • ALFA ROMEO 46533518
  • ALFA ROMEO 46553045
  • CAN-AM 420874650
  • CAN-AM 707000564
  • CAN-AM 707000995
  • CHERY S213614021
  • CHEVROLET 93 313 154
  • DUCATI 55240312B
  • FAW 360203537K
  • FIAT 0000046553045
  • FIAT 46533518
  • FIAT 46553045
  • FIAT 7084986
  • FIAT 77364869
  • LANCIA 0000046553045
  • LANCIA 46533518
  • LANCIA 46553045
  • LANCIA 77364869
  • PROTON PW810694
  • ROTAX (BOMBARDIER-ROTAX GMBH) 874 650
  • SCANIA 5166434
  • SEA-DOO 707000564
  • SEA-DOO 707000995
  • SKI-DOO 707000995
  • TATA MOTORS 570515209908
  • TRUMPCHI 10130142010000

Supplier Code: 261230245

E and M Code: 261230245

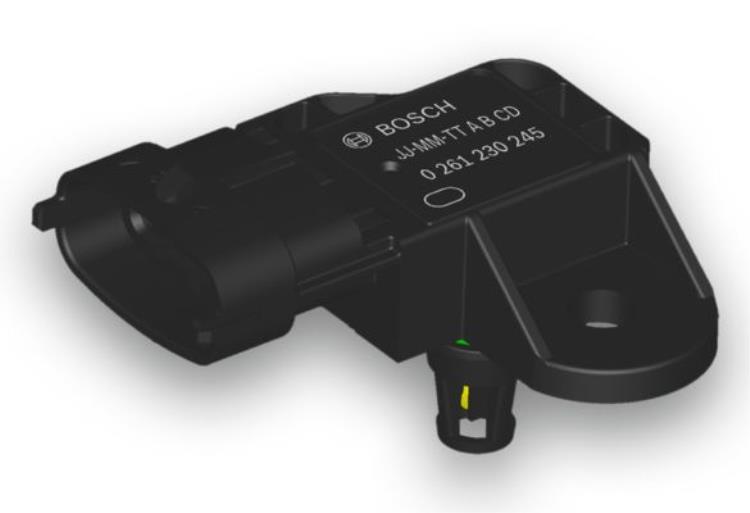

Bosch Pressure Sensor MAP Sensor 115 kPa DS-S3-TF 261230245 - 0261230245LIA0WHCO0000.jpg

Bosch Pressure Sensor MAP Sensor 115 kPa DS-S3-TF 261230245 - 0261230245PH01WHCO0000LA.jpg

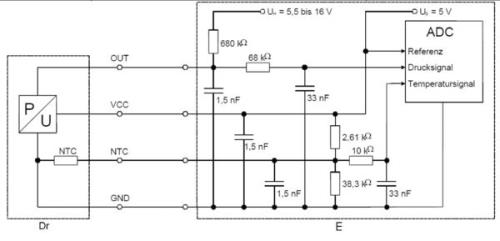

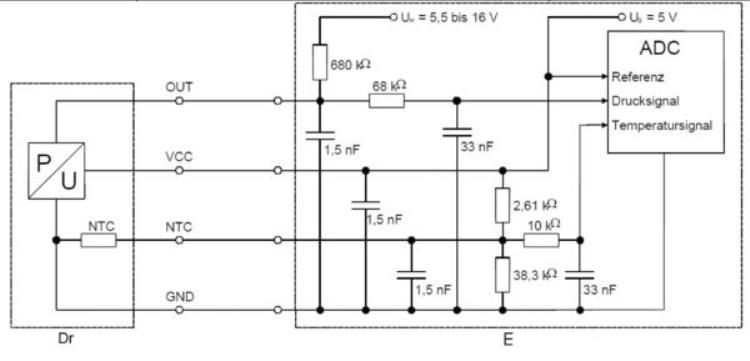

Bosch Pressure Sensor MAP Sensor 115 kPa DS-S3-TF 261230245 - 0261230245COFRWHCO0000.jpg

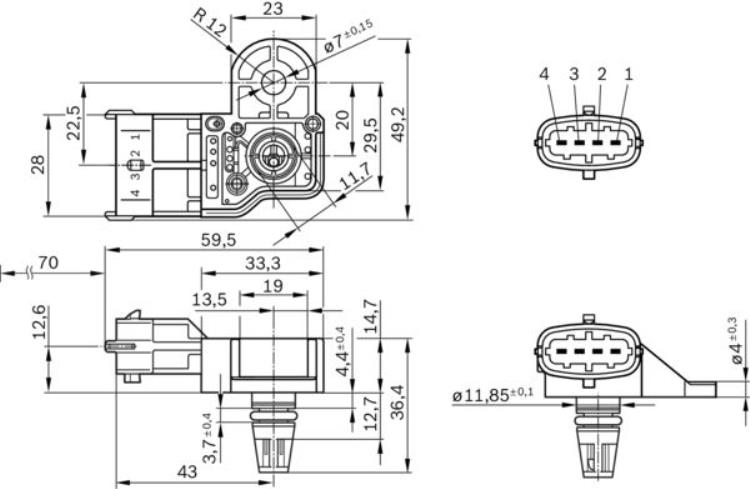

Bosch Pressure Sensor MAP Sensor 115 kPa DS-S3-TF 261230245 - 0261230245DRFRWHCO00MM.jpg

Price(Exc.VAT): £10.10

Quantity Available: 0

Minimum Postal Charge: Royal Mail Small Packets £3.50
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...

When will this be back in stock / Information Request

Name

Email:

Your Question




Category: Fuel and Engine Management / Sub Category: Map Sensor
