Bosch 5v Map Sensor Pressure Sensor (Fiat Nissan Renault) DS-S3 281002996

Bosch Car Parts

Bosch 5v Map Sensor Pressure Sensor (Alfa Romeo Dacia Ferrari Fiat Lancia Mahindra Nissan Opel Renault Saab Suzuki Vauxhall) DS-S3 281002996

  • Replacement Map Sensor
  • Suitable for Alfa Romeo, Dacia, Ferrari, Fiat, Lancia, Mahindra, Nissan, Opel, Renault, Saab, Suzuki and Vauxhall Vehicles

Specifications

  • Part number: 0 281 002 996
  • Designation: Pressure sensor
  • Article status: Standard
  • Temperature range from -40 °C
  • Temperature range up to 130 °C
  • Storage temperature - min. -40 °C
  • Storage temperature - max. 130 °C
  • Supply voltage - min. 4.75 V
  • Supply voltage - max. 5.25 V
  • Response time - max. 1 ms
  • Load current at output - max. 0.5 mA
  • Load current at output - min. -1 mA
  • Measuring range (pressure) - min. 20 kPa
  • Measuring range (pressure) - max. 300 kPa
  • Voltage limitation - upper limit - min. 4.65 V
  • Voltage limitation - upper limit - max. 4.75 V
  • Voltage limitation - upper limit - typical 4.7 V
  • Voltage limitation - lower limit - min. 0.25 V
  • Voltage limitation - lower limit - max. 0.35 V
  • Voltage limitation - lower limit - typical 0.3 V
  • Current input - min. 6 mA
  • Current input - max. 12.5 mA
  • Current input - typical 9 mA
  • Supply voltage - typical 5 V
  • Measuring range (temperature) - min. -40 °C
  • Measuring range (temperature) - max. 130 °C Type formula: DS-S3

OEM Numbers

  • ALFA ROMEO 55209194
  • ALFA ROMEO 55219295
  • DACIA 22 36 500 01R
  • FERRARI 283538
  • FIAT 0000055219295
  • FIAT 000283538
  • FIAT 55209194
  • FIAT 55219295
  • FIAT S8100181
  • FIAT S8100182
  • LANCIA 55219295
  • MAHINDRA 0315CM0011N
  • NISSAN 22365 BC400
  • NISSAN 25085 AW300
  • NISSAN 2508500Q0A
  • NISSAN 2508500Q0C
  • OPEL 93198753
  • OPEL 93857938
  • RENAULT 1320767
  • RENAULT 22 36 500 01R
  • RENAULT 82 00 168 253
  • RENAULT E1300A
  • SAAB (SAAB AUTOMOBILE AB) 93857938
  • SUZUKI 18590 84A50 000
  • SUZUKI 18590-84A50
  • VAUXHALL 93198753
  • VAUXHALL 93857938

Supplier Code: 281002996

E and M Code: 281002996

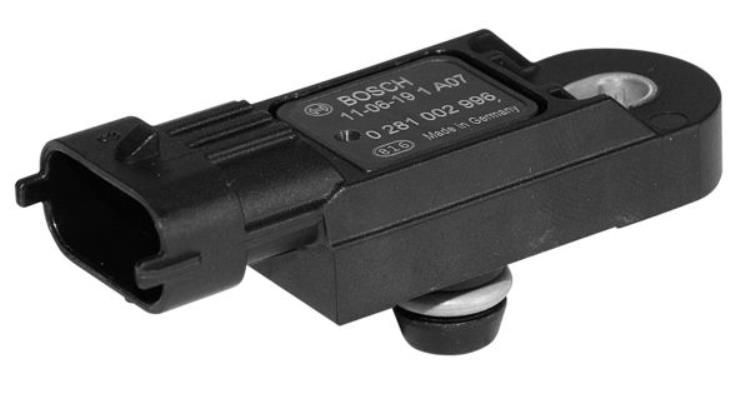

Bosch 5v Map Sensor Pressure Sensor (Fiat Nissan Renault) DS-S3 281002996 - 0281002996PHA0WHCO0000.jpg

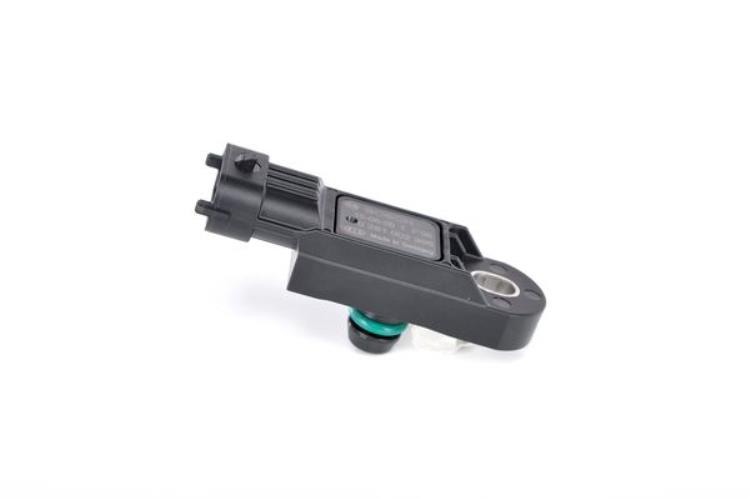

Bosch 5v Map Sensor Pressure Sensor (Fiat Nissan Renault) DS-S3 281002996 - 0281002996PH07WHCO0000.jpg

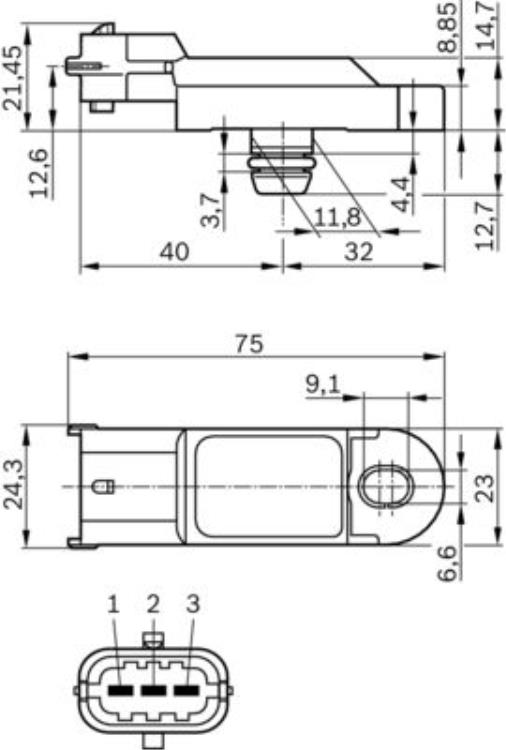

Bosch 5v Map Sensor Pressure Sensor (Fiat Nissan Renault) DS-S3 281002996 - 0281002996DRFRWHCO00MM.jpg

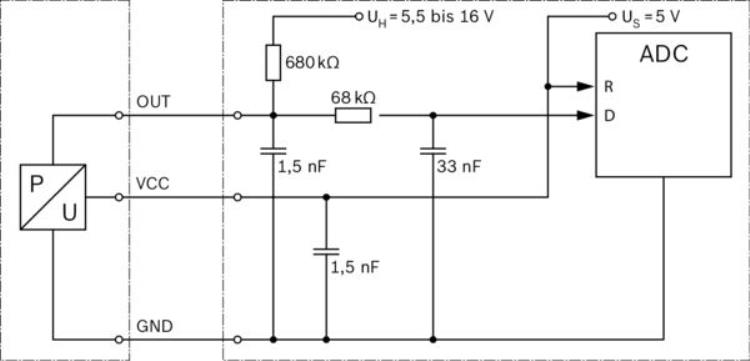

Bosch 5v Map Sensor Pressure Sensor (Fiat Nissan Renault) DS-S3 281002996 - 0281002996CDFRWHCO0000.jpg

Price(Exc.VAT): £54.03

Quantity Available: 0

Minimum Postal Charge: Royal Mail Large Packets £5.50
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...

When will this be back in stock / Information Request

Name

Email:

Your Question




Category: Fuel and Engine Management / Sub Category: Map Sensor
