JASIC PRO TIG 200 Pulse Welding Inverter (Dual Voltage) JT-200PDV

Jasic Inverters Car Parts

JASIC PRO TIG 200 Pulse Welding Inverter (Dual Voltage)

  • Includes TIG torch & adaptor, gas regulator, work return lead & clamp
  • 5 year warranty

Functions

  • Hot start arc ignition function: makes the arc ignition in TIG under low current easier and more reliable.
  • 2T/4T function.
  • Downslope and post-flow gas function
  • Self-adaptive arc force technology improves the performance of the machine when using long-cable
  • welding.
  • Excellent HF arc ignition: High reliability arc striking.
  • Advanced arc ignition by lift arc: TIG welding without HF arc ignition circuit.

Performance

  • Advanced IGBT inverter technology
  • Inverting frequency of 33~43 kHz greatly reduces the size and weight of the welder.
  • Great reduction in magnetic and resistance loss enhances the welding efficiency and energy saving effect.
  • Working frequency is beyond the audio range, which almost eliminates noise pollution.
  • Industry leading control system
  • Advanced control technology meets the various weldingapplications and provides excellent welding performance.
  • It can be used with a wide range of welding electrodes.
  • Easy arc starting, less spatter, stable current and goodweld bead shaping.
  • Modern high tech design
  • Streamline design of front and rear panels.
  • Front and rear panels made of high-intensity plastics suitable for working in severe conditions.
  • Excellent insulating property.
  • Water-resistant, antistatic and anticorrosion design.
  • Digital amp and voltmeter

Technical Data

  • Input Voltage AC: 230V 50/60 Hz AC 115V 50/60 Hz
  • Input Power (kVA): MMA 8.2 TIG 6
  • Current Range (A): MMA 10 - 180 MMA 10 - 100           TIG 10 - 200 TIG 10 - 130
  • Duty Cycle: @ 40°C 200A @ 35% 130A @ 35%
  • No-Load Voltage (V): MMA 60 TIG 65
  • Efficiency (%): 85
  • Power Factor: 0.70
  • Pulse Frequency (Hz): 0.5 - 200
  • Protection/Insulation Class: IP21S/F
  • Dimensions (mm): 365 x 135 x 277
  • Weight (Kg): 6.12



Code: JT-200PDV

Supplier Code: JT-200PDV

E and M Code: JT-200PDVWILK

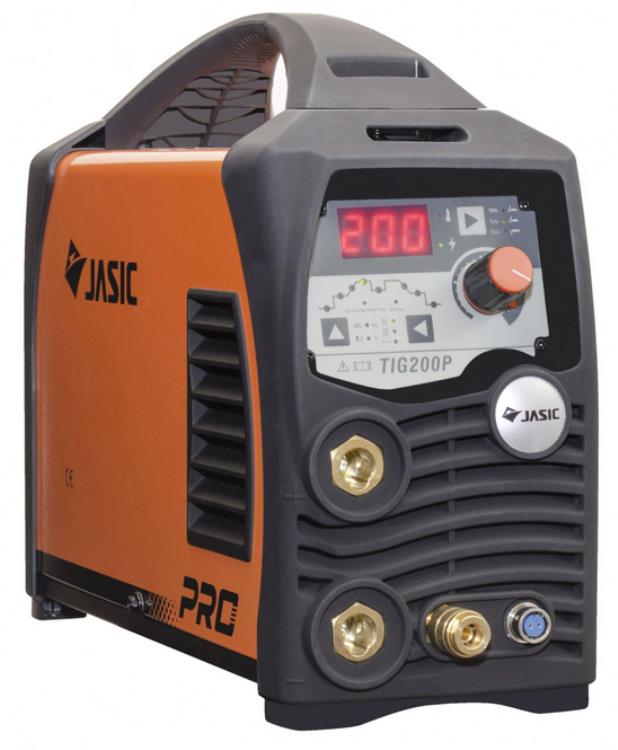

JASIC PRO TIG 200 Pulse Welding Inverter (Dual Voltage) JT-200PDV - JT-200PDVWelder-1.jpg

JASIC PRO TIG 200 Pulse Welding Inverter (Dual Voltage) JT-200PDV - JT-200PDVWelder-2.jpg

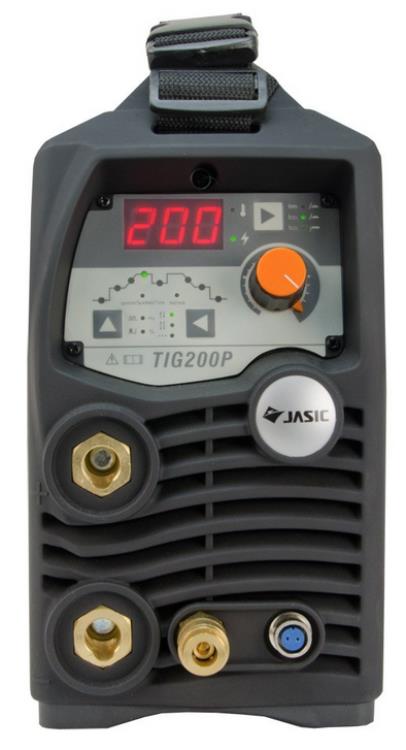

JASIC PRO TIG 200 Pulse Welding Inverter (Dual Voltage) JT-200PDV - JT-200PDVWelder-3.jpg

Price(Exc.VAT): £0.00

Quantity Available: 0

Minimum Postal Charge: Royal Mail Small Packets £3.50
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...

When will this be back in stock / Information Request

Name

Email:


Your Question






Category: Welding and Cutting / Sub Category: Welders
