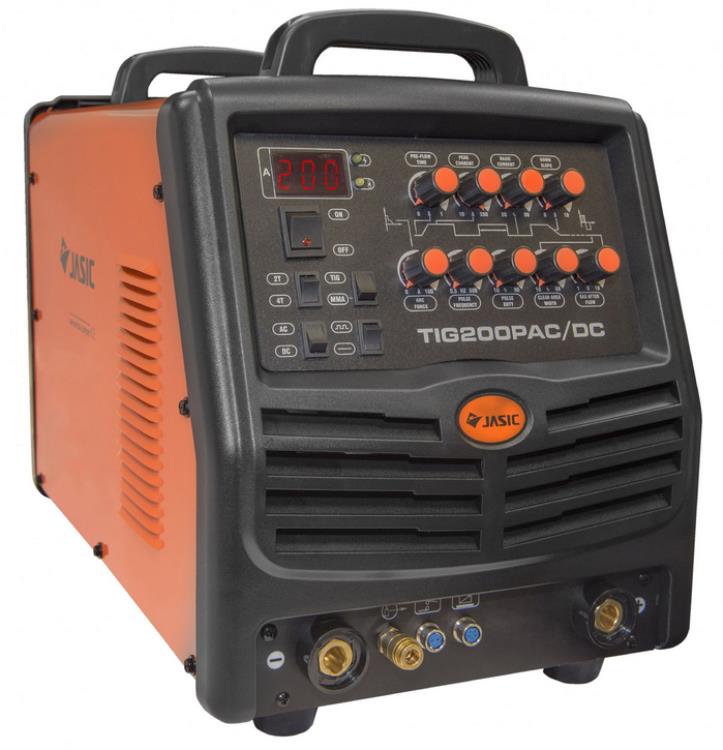

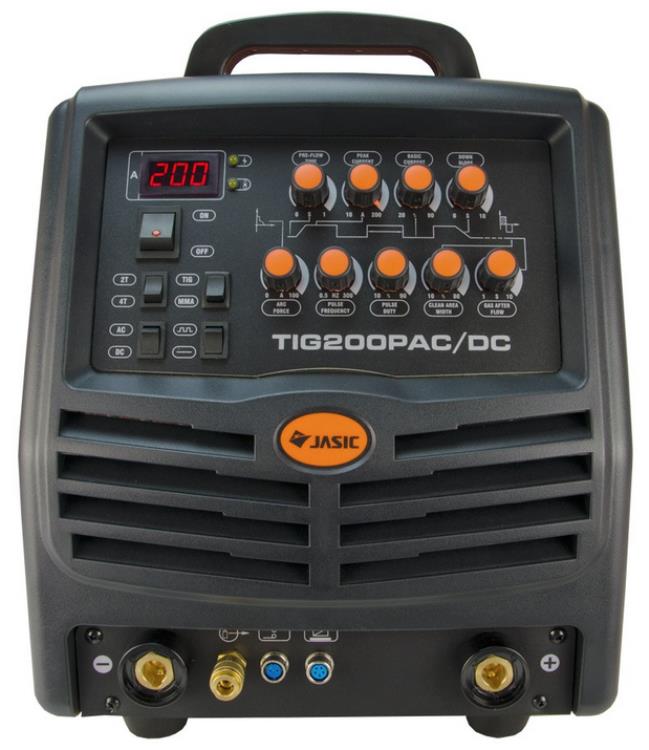

JASIC PRO TIG 200P AC/DC Analog JT-200A
JASIC PRO TIG 200P AC/DC Analog
- Optional accessory; foot control unit (JFC-01)

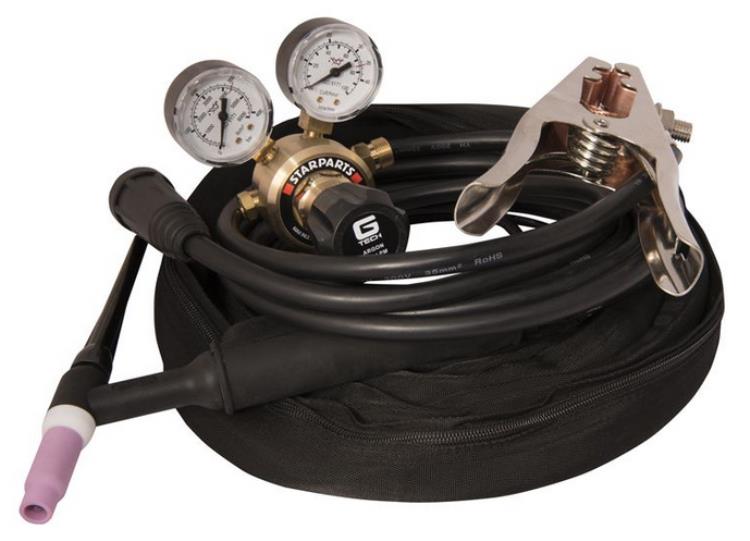

- Includes TIG torch & adaptor, gas regulator, work return lead & clamp
- 5 year warranty

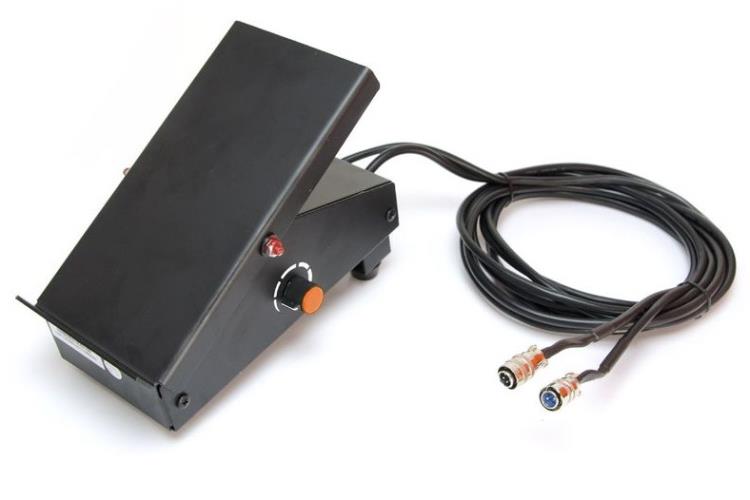

Foot control option
This machine can identify the foot control automatically. The machine will enter into foot control mode automatically after the plug of the foot control is connected to the welding machine and the machine is powered on again. In foot control mode, the maximum current is the preset current and the minimum current is 10A.
Voltage indicator
When this indicator illuminates, it indicates that there is voltage output at the output terminals of the welding machine. When TIG is selected as the welding mode, there will be voltage output only when the torch trigger is pressed continuously and after arc is ignited successfully. When MMA is selected as the welding mode, there will be voltage output whether arc is ignited or not.
Functions
- DC TIG, Pulsed TIG and MMA modes are available.
- Easy to use intuitive digital control panel for setting of parameters.
- LED display
- Rotary encoder control
- Hot start arc ignition function.
- Arc force current control
- 2T/4T and spot function.
- Upslope, Downslope, pre and post-flow gas function all adjustable
- Full control of pulse parameters
- Self-adaptive arc force technology improves the performance of the machine when using long-cable welding.
- Excellent HF arc ignition: High reliability arc striking.
- Advanced arc ignition by lift arc: TIG welding without HF arc ignition circuit.
- Over current, under-voltage and overheating protection functions are standard.
- Fault memory display
- Memory function
Performance
- Advanced IGBT inverter technology
- Inverting frequency of 33~43 kHz greatly reduces the size and weight of the welder.
- Great reduction in magnetic and resistance loss enhances the welding efficiency and energy saving effect.
- Working frequency is beyond the audio range, which almost eliminates noise pollution.
- Industry leading control system
- Advanced control technology meets the various welding applications and provides excellent welding performance.
- It can be used with a wide range of welding electrodes.
- Easy arc starting, less spatter, stable current and good weld bead shaping.
- Modern high tech design
- Streamline design of front and rear panels.
- Front and rear panels made of high-intensity plastics suitable for working in severe conditions.
- Excellent insulating property.
- Water-resistant, antistatic and anticorrosion design.
Technical Data
- Input Voltage (Single Phase): AC 230V - 50/60 Hz
- Rated Input Current (A): 20
- Current Range (A): MMA DC 10 - 185 MMA AC 20 - 185 TIG DC 10 - 185 TIG AC 30 - 185
- Duty Cycle: @ 40°C 185A @ 60%
- No-Load Voltage (V): 70
- Protection/Insulation Class: IP21S/B
- Dimensions (mm): 493 x 330 x 320
- Weight (Kg): 25
