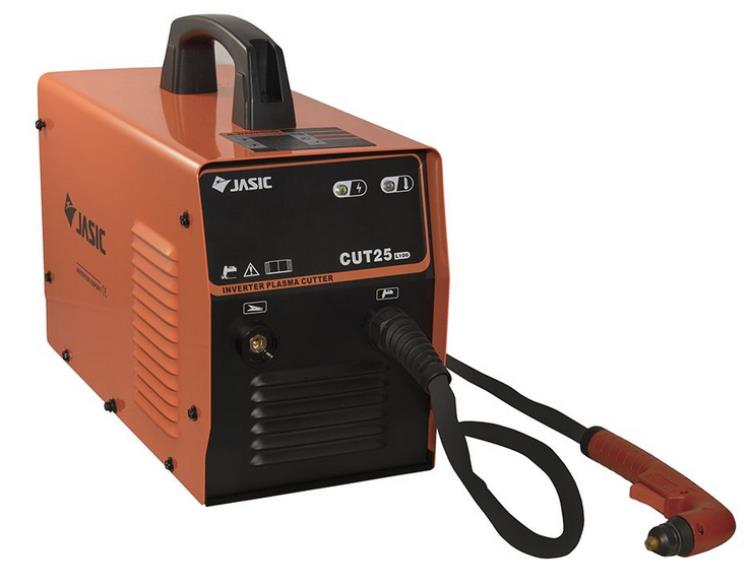

JASIC PRO Air Cut 25 Plasma Inverter with Compressor JP-25
JASIC PRO Air Cut 25 Plasma Inverter with Compressor
CUT25 is a plasma cutting machine model developed from the original CUT series plasma cutting machines. It inherits the mature and stable inverter technology of CUT series: With PWM technology and high power MOSFET switching devices, it converts the DC voltage, which is rectified from 50Hz/60Hz input AC voltage, to 100KHz AC high voltage. Then, the voltage is dropped and rectified, providing a high power DC cutting is output.
The CUT series uses a non-HF arc ignition with pilot arc. This reduce EMI emissions during the arc start. Therefore, non-HF arc ignition with pilot arc should be used when higher requirement on electromagnetic environment is, e.g. in CNC cutting.The CUT25 is designed for such high-end application. In addition, CUT25 adopts a single PCB structure. An external air source connection is unnecessary, since it is equipped with an internal air compressor. Both contact and non-contact mode is available for successful arc ignition, and the 3s pilot arc time auto control inside the machine effectively reduces the wear of torch nozzle. The machine has such advantages as simple internal structure, small size, easy to ignite arc and convenient to use.
Product functions
- Internal air compressor is equipped, and external air source connection is unnecessary.
- Fixed current output
- Product performance characteristics
- Economical and practical by using compressed air as the plasma gas source.
- The cutting speed is increased by 1.8 times when compared with oxy-acetylene cutting.
- It can cut thin steel plate conveniently and quickly.
- Easy to ignite arc, pre-flow and post-flow function available.
- It has a wide range of use, especially for cutting stainless steel, copper, cast iron and aluminum, etc.
- Simple operation
- Excellent cut quality
- Both contact and non-contact mode is available forsuccessful arc ignition.
Key Features
- Perfect for site maintenance work and bodyshops
- Features built in air compressor
- Portable, compact design
- Single phase IGBT Plasma Inverter technology
- Includes PLASMA torch, work return lead & clamp
- 5 year warranty
Technical Data
- Input Voltage AC 230V - 50/60 Hz
- Input Power (kVA) 6
- Input Current (A) 25
- Efficiency (%) 85
- Arc Starting Touch/No Touch
- Duty Cycle @ 35% (A) 25
- Cutting Capacity (Clean Cut) 4mm
- Cutting Capacity (Severance Cut) 6mm
- Power Factor 0.7
- Protection/Insulation Class IP21S/F
- Dimensions (mm) 430 x 199 x 335
- Weight (Kg) 18

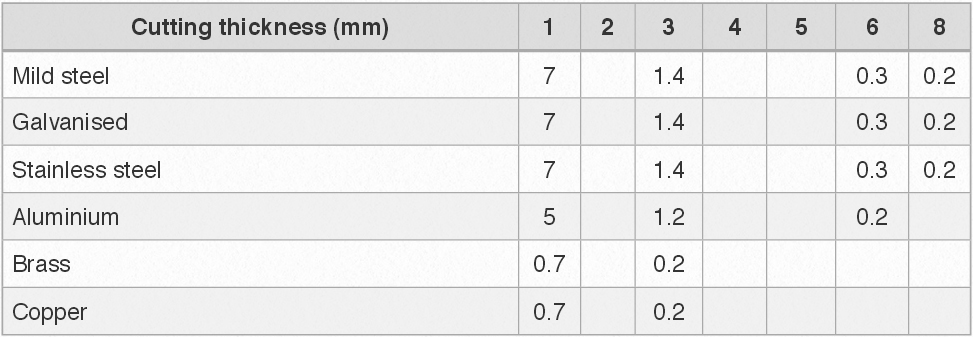

Cutting Thickness
Code: JP-25
Supplier Code: JP-25
E and M Code: JP-25WILK
Price(Exc.VAT): £620.80
Quantity Available: 0
Minimum Postal Charge: Full Pallet (UK Not Highlands and Over Seas) £39.99
Sorry this product cannot be added as it is temporarily out of stock, please call the shop for availability...
When will this be back in stock / Information Request
Category: Welding and Cutting / Sub Category: Plasma Cutters
|
